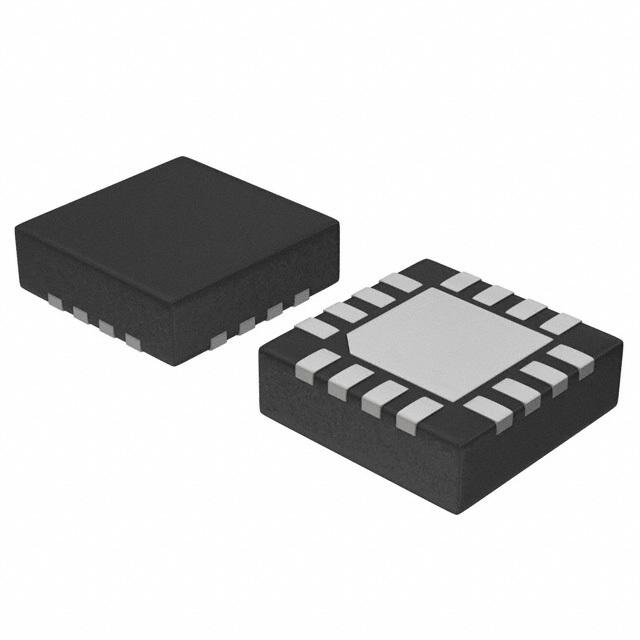

Image is for your reference only,please check specifications for details
- NCP3133AMNTXG - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC119035557
-
Category:DC to DC Converter
-
Package:QFN-16
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 2.9V to 5.5V Synchronous Step Down Single-Out 0.6V to 4.62V 3A 16Pin QFN EP T/R
-
Stock Locations:
-
Availability:292 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.04
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 3A 16-VFQFN Exposed Pad
NCP3133AMNTXG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | QFN-16 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.6V ~ 4.62V |
| Output Current | 3 A |
| Switching Frequency | 1.1 MHz |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 2.9 V |
| Output Voltage (Max) | 4.62 V |
| Output Voltage (Min) | 0.6 V |
| Output Current (Max) | 3 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| Input Voltage | 2.9V ~ 5.5V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 1 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
