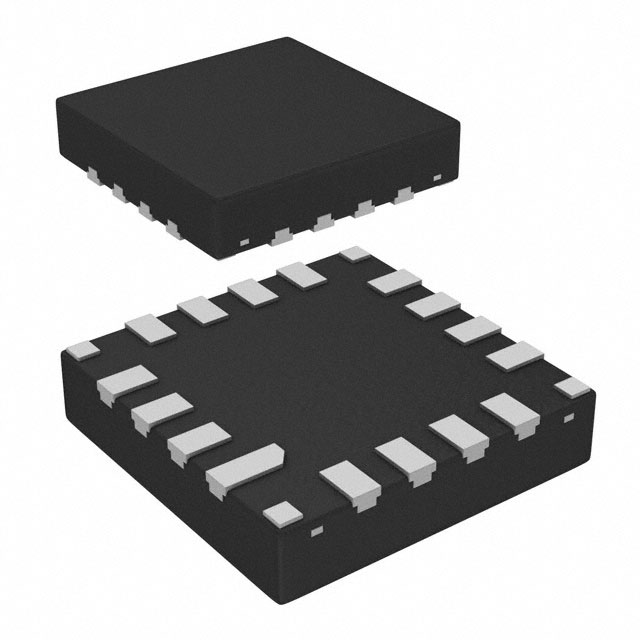

LMH6401IRMZT - TI
Manufacturer:
TI
ManyChip's Part#:
MC1620296
Category:
Amplifier chip
Package:
UQFN-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LMH6401IRMZT Programmable/Variable Amplifier, 1Channels, 1 Amplifier, 4.5GHz, -40℃, 85℃, 4V to 5.5V
Stock Locations:
Availability:
290 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 37.28

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LMH6401 is a wideband, digitally-controlled, variable-gain amplifier (DVGA) designed for dc to radio frequency (RF), intermediate frequency (IF), and high-speed time-domain applications. The device is an ideal analog-to-digital converter (ADC) driver for dc- or ac-coupled applications that require an automatic gain control (AGC).
Noise and distortion performance is optimized to drive ultra-wideband ADCs. The amplifier has an 8-dB noise figure at maximum gain and a –63-dBc harmonic distortion at 1 GHz for full-scale signal levels. The device supports both single- and split-supply operation for driving an ADC. A common-mode reference input pin is provided to align the amplifier output common-mode with the ADC input requirements.
Gain control is performed via an SPI™ interface, allowing a 32-dB gain range from –6 dB to 26 dB in 1-dB steps. A power-down feature is also available through the external PD pin or SPI control.
This level of performance is achieved at a low power level of 345 mW. The operating ambient temperature range is –40°C to 85°C.

Show

LMH6401IRMZT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	16 Pin
Case/Package	UQFN-16
Frequency	0Hz ~ 4.5GHz
Supply Current	69 mA
Number of Channels	1 Channel
Number of Positions	16 Position
Bandwidth	4.5 GHz
Slew Rate	17.4 kV/μs
Output Power	18.3 dBm
Gain	26 dB
Test Frequency	500 MHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	4500 MHz
Minimum CMRR Range	38.4 dB
Supply Voltage	4V ~ 5.5V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
