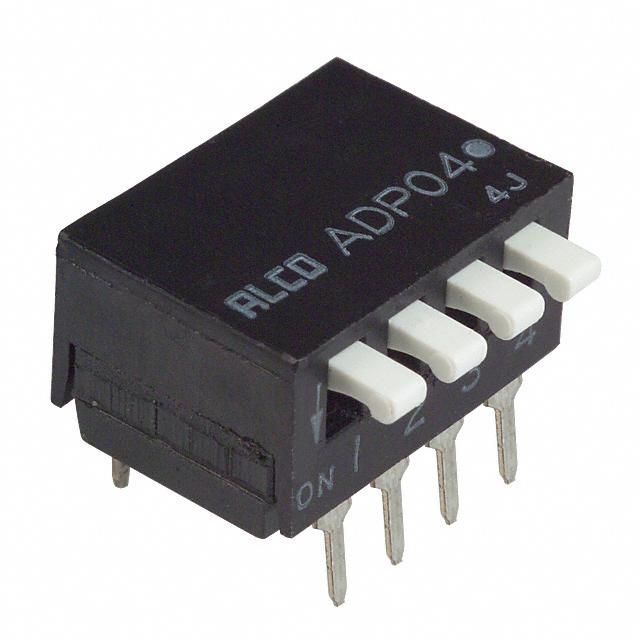

Image is for your reference only,please check specifications for details
- ADP04 - TE Connectivity
-
Manufacturer:TE Connectivity
-
ManyChip's Part#:MC154901679
-
Category:DIP Switch, SIP Switch
-
Datasheet:Datasheet 3D Model
-
Description:Переключатель DIP, выкл/вкл, SPST, 4-позиционный, типа "пианино", 0,1 А, 24 В пост. тока, 0,4 ВА, штыревые выводы для печатной платы с шагом 2,54 мм, монтаж в отверстия.
-
Stock Locations:
-
Availability:2,514 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.72
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
ADP04 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Pin Pitch | 2.54 mm |
| Contact Plating | Gold Flash |
| Voltage Rating (DC) | 24 V |
| Actuator Type | Standard |
| Current Rating | 100 mA |
| Contacts Type | SPST |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 4 Position |
| Current Rating (Max) | 0.1 A |
| Voltage Rating | 24 VDC |
| Show | |
| Size-Length | 12.14 mm |
| Size-Width | 10.91 mm |
| Size-Height | 7.47 mm |
| Contact Material | Copper Alloy |
| Operating Temperature | -30℃ ~ 85℃ |
| Housing Material | Polyester |
| Product Lifecycle Status | Superseded |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| ELV Compliant | Non-Compliant |
