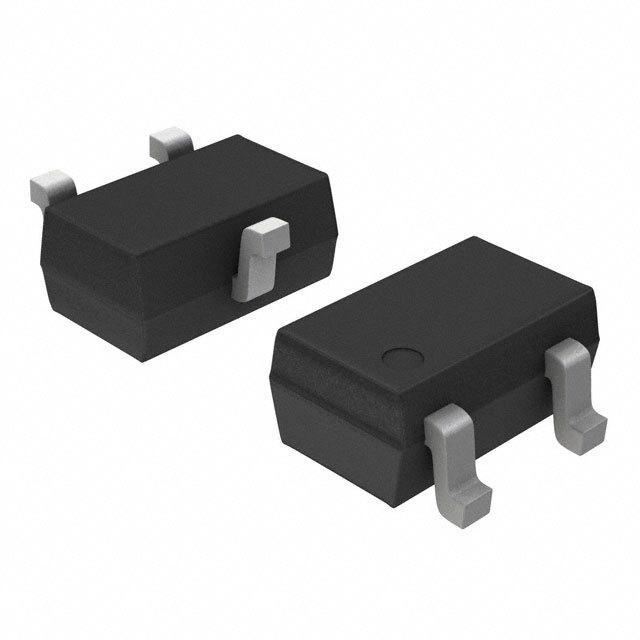

Image is for your reference only,please check specifications for details

MMBD352WT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC19889959
Category:
RF diode
Package:
SC-70-3
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MMBD352WT1G RF Schottky Diode, Barrier, Single Pair Series, 7V, 10mA, 600mV, 0.9pF, SOT-323
Stock Locations:
Availability:
10,620 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.09

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

MMBD352WT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SC-70-3
Voltage Rating (DC)	7.00 V
Current Rating	80.0 mA
Capacitance	0.9 pF
Halogen Free Status	Halogen Free
Forward Voltage	0.6 V
Power Dissipation	300 mW
Forward Current	0.01 A
Maximum Forward Voltage (Max)	600 mV
Forward Current (Max)	10 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	200 mW
	Show
Size-Length	2.1 mm
Size-Width	1.24 mm
Size-Height	0.85 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
