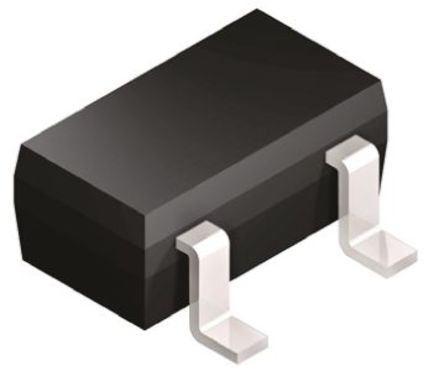

Image is for your reference only,please check specifications for details

MMBFJ309LT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC1408060
Category:
JFET Transistor, JFET
Package:
SOT-23-3
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MMBFJ309LT1G JFET Transistor, JFET, -25V, 12mA, 30mA, -4V, SOT-23, JFET
Stock Locations:
Availability:
282 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.08

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MMBFJ309LT1G is a N-channel JFET designed for high frequency amplifiers and oscillators. The device offers interchangeable drain and source, space saving surface-mount package. The Low RDS (ON) provides higher efficiency and extends battery life.
25VDC Drain-source voltage
25VDC Gate-source voltage
10mA Gate current

Show

MMBFJ309LT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Voltage Rating (DC)	-25.0 V
Current Rating	30 mA
Power Rating	225 mW
Halogen Free Status	Halogen Free
Breakdown Voltage	-25.0 V
Polarity	N-Channel
Power Dissipation	225 mW
Input Capacitance	5 pf
Drain to Source Voltage (Vds)	25 V
Breakdown Voltage (Gate to Source)	25.0 V
Continuous Drain Current (Ids)	10.0 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	225 mW
Voltage Rating	25 V
	Show
Size-Length	3.04 mm
Size-Width	1.4 mm
Size-Height	1.01 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
