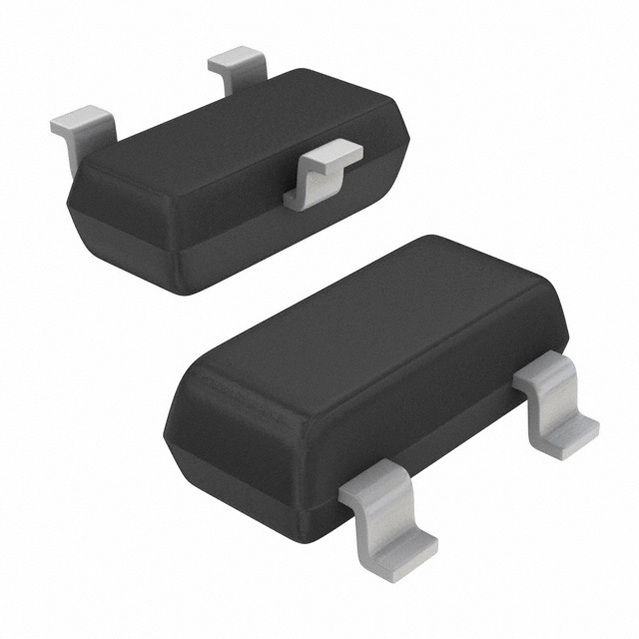

Image is for your reference only,please check specifications for details

MMBZ15VDLT1 - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC128526203
Category:
TVS Diode
Package:
SOT-23-3
Datasheet:
Datasheet 3D Model
Description:
15V Dual Common Cathode Zener Diode Transient Voltage Suppressor, SOT-23 (TO-236) 3 LEAD, 3000-REEL
Stock Locations:
Availability:
9,900 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.22

Updated at 29/04/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

40 Watt Peak Power Zener Transient Voltage Suppressors
SOT−23 Dual Common Cathode Zeners for ESD Protection
These dual monolithic silicon zener diodes are designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. Their dual junction common cathode design protects two separate lines using only one package. These devices are ideal for situations where board space is at a premium.
Specification Features:
•SOT−23 Package Allows Either Two Separate Unidirectional Configurations or a Single Bidirectional Configuration
•Working Peak Reverse Voltage Range − 12.8 V, 22 V
•Standard Zener Breakdown Voltage Range − 15 V, 27 V
•Peak Power − 40 W @ 1.0 ms (Bidirectional), per Figure 5 Waveform
•ESD Rating of Class N (exceeding 16 kV) per the Human Body Model
•Low Leakage < 100 nA
•Flammability Rating: UL 94 V−O
•Pb−Free Packages are Available

Show
