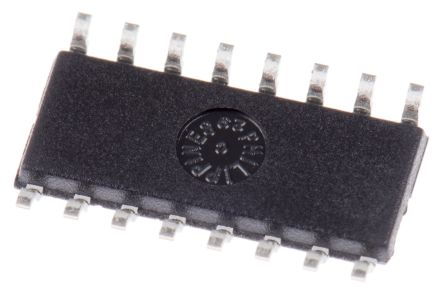

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MMPQ2222A is a 40V NPN Multi-chip General-purpose Transistor used for medium power amplifier and switching requiring collector currents up to 500mA. This product is general usage and suitable for many different applications.

Show

MMPQ2222A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Frequency	300 MHz
Number of Positions	16 Position
Polarity	NPN
Power Dissipation	1 W
Breakdown Voltage (Collector to Base)	75.0 V (min)
Breakdown Voltage (Collector to Emitter)	40 V
hFE Min	100 @150mA, 10V
Input Power (Max)	1 W
DC Current Gain (hFE)	100
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1000 mW
	Show
Size-Length	10 mm
Size-Width	4 mm
Size-Height	1.5 mm
Material	Silicon
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
