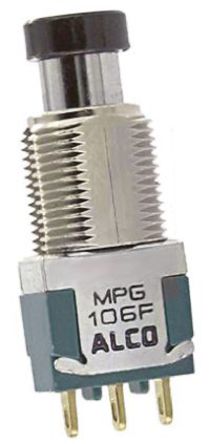

Image is for your reference only,please check specifications for details

MPG106F - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC37075604
Category:
Pushbutton Switch, Switch Push button
Package:
Epoxy Resin
Datasheet:
Datasheet 3D Model
Description:
ALCOSWITCH - TE CONNECTIVITY MPG106F Pushbutton Switch, Momentary Spring Return, SPDT, 125V, 28V, 6A, Solder
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

MPG106F Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Case/Package	Epoxy Resin
Voltage Rating (DC)	28 V
Voltage Rating (AC)	125 V
Current Rating	6 A
Insulation Resistance	1000 MΩ
Number of Positions	2 Position
Contact Current Rating	6A @120VAC
Current Rating (Max)	6A @125VAC
Operating Temperature (Max)	80 ℃
Operating Temperature (Min)	-20 ℃
Voltage Rating	125 VAC
Maximum Contact Resistance (Max)	10 mΩ
	Show
Size-Length	13 mm
Size-Width	8 mm
Size-Height	35.67 mm
Contact Material	Copper
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8536509065
ECCN Code	EAR99
