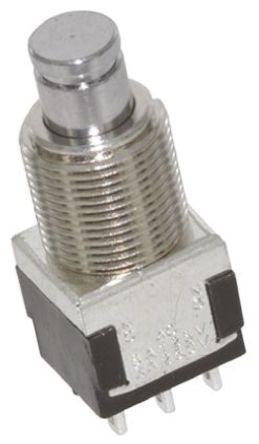

Image is for your reference only,please check specifications for details

MPG206R - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC65535015
Category:
Pushbutton Switch, Switch Push button
Package:
Epoxy Resin
Datasheet:
Datasheet 3D Model
Description:
Switch Push Button DPDT Round Plunger 6A 250VAC Momentary Contact Wire Lug Panel Mount Bulk
Stock Locations:
Availability:
278 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 21.75

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

MPG206R Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Panel
Case/Package	Epoxy Resin
Contact Plating	Gold Flash over Silver
Voltage Rating (DC)	28 V
Actuator Type	Button
Voltage Rating (AC)	125 V
Current Rating	6 A
Orientation	Vertical
Contacts Type	DPDT
Number of Positions	2 Position
Contact Current Rating	6 A
Current Rating (Max)	6A @125VAC
Operating Temperature (Max)	80 ℃
Operating Temperature (Min)	-20 ℃
Voltage Rating	125 VAC
Voltage Rating (AC Max)	250 V
Maximum Contact Resistance (Max)	10 mΩ
	Show
Size-Length	13 mm
Size-Width	13 mm
Contact Material	Copper
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
HTS Code	8536509065
ECCN Code	EAR99
