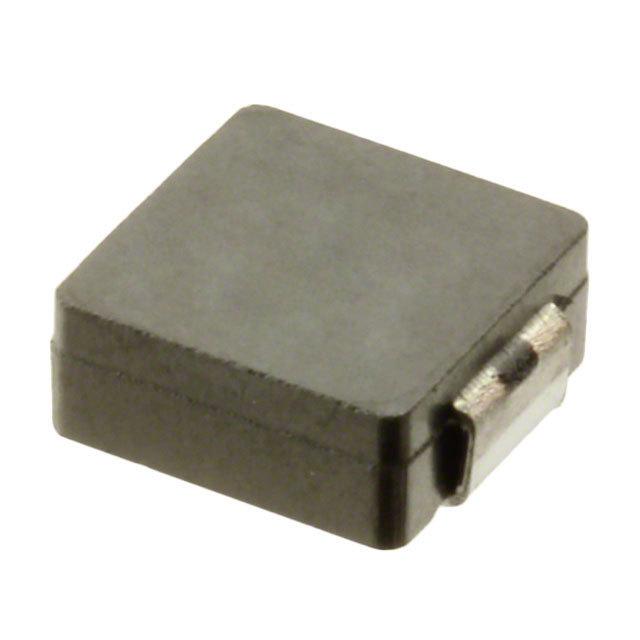

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

MPLC0730L1R0 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SMD-2
Current Rating	10.6 A
Capacitance Tolerance	±20 %
Inductance	1 µH
Inductance Tolerance	±20 %
Test Frequency	100 kHz
DC Resistance (DCR)	≤9 mΩ
Operating Temperature (Max)	120 ℃
Operating Temperature (Min)	-20 ℃
Resistance (DC Max)	0.009 Ω
	Show
Size-Length	7.7 mm
Size-Width	6.7 mm
Size-Height	3 mm
Operating Temperature	-20℃ ~ 120℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
