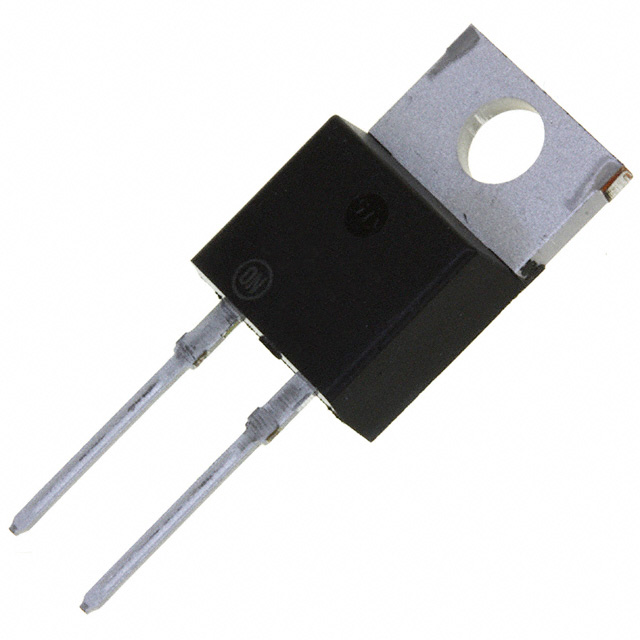

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- SWITCHMODE™ Soft Recovery Power Rectifiers
- Plastic TO−220 Package
- These state−of−the−art devices are designed for use as free wheeling diodes in variable speed motor control applications and switching power supplies.
- Features
- • Soft Recovery with Guaranteed Low Reverse Recovery Charge
- (QRR) and Peak Reverse Recovery Current (IRRM)
- • 150°C Operating Junction Temperature
- • Epoxy meets UL 94 V−0 @ 0.125 in
- • Low Forward Voltage
- • Low Leakage Current
- • Pb−Free Package is Available
MSR860 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | TO-220-2 |
| Voltage Rating (DC) | 600 V |
| Current Rating | 8.00 A |
| Output Current | ≤8.00 A |
| Forward Voltage | 1.7V @8A |
| Polarity | Standard |
| Reverse recovery time | 120 ns |
| Forward Current | 8 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | 65 ℃ |
| Show | |
| Size-Length | 10.36 mm |
| Size-Width | 4.9 mm |
| Size-Height | 9.19 mm |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
