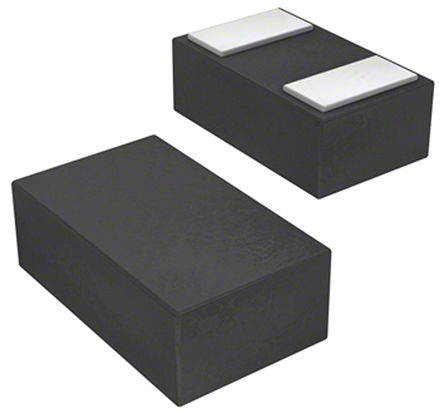

Image is for your reference only,please check specifications for details

TPD1E6B06DPLR - TI
Manufacturer:
TI
ManyChip's Part#:
MC14075361
Category:
TVS Diode
Package:
XFDFN-2
Datasheet:
Datasheet 3D Model
Description:
Single-Channel ESD in 0201 Package With 6pF Capacitance and 6V Breakdown 2-X2SON -40℃ to 125℃
Stock Locations:
Availability:
33,000 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.05

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPD1E6B06 device is a single-channel TVS diode for electrostatic discharge (ESD) protection in a small 0201 package. The TPD1E6B06 is rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard (Level 4), with ±15-kV contact discharge and ±15-kV air-gap ESD protection. The device has a back-to-back TVS diode configuration for bipolar or bidirectional signal support. The 6-pF line capacitance is suitable to provide transient voltage suppression circuit protection for a wide range of applications, supporting data rates up to 800 Mbps.
Typical application interfaces for the TPD1E6B06 are audio lines (microphone, earphone, and speakerphone), SD interfacing, keypad or other buttons, as well as the VBUS and ID pins of USB ports. With its industry-standard 0201 package, The TPD1E6B06 has an extremely small footprint, making it ideal for space-saving end equipment like mobile phones, tablets, and wearables.

Show

TPD1E6B06DPLR Specifications
