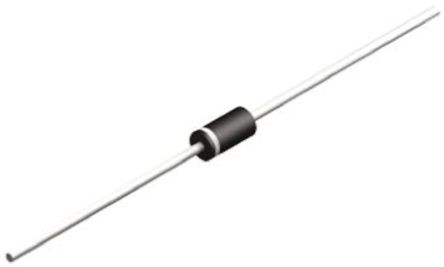

Image is for your reference only,please check specifications for details

MUR220G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC2731559
Category:
Schottky Diode
Package:
DO-41
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MUR220G Fast / Ultrafast Diode, 200V, 2A, Single, 950mV, 35ns, 35A
Stock Locations:
Availability:
240 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.39

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

MUR220G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-41
Voltage Rating (DC)	200 V
Current Rating	2.00 A
Halogen Free Status	Halogen Free
Output Current	≤2.00 A
Number of Circuits	1 Circuit
Forward Voltage	950mV @2A
Polarity	Standard
Thermal Resistance	72℃/W (RθJA)
Reverse recovery time	35 ns
Forward Current	2 A
Max Forward Surge Current (Ifsm)	35 A
Maximum Forward Voltage (Max)	950 mV
Forward Current (Max)	2 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	5.2 mm
Size-Width	2.7 mm
Size-Height	5.2 mm
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
