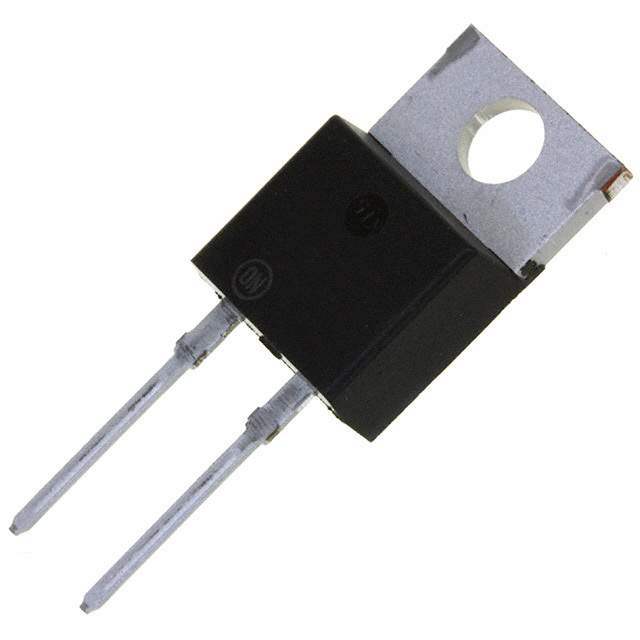

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

MUR815 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-220-2
Voltage Rating (DC)	150 V
Current Rating	8.00 A
Output Current	≤8.00 A
Forward Voltage	975mV @8A
Polarity	Standard
Thermal Resistance	3℃/W (RθJC)
Reverse recovery time	35 ns
Max Repetitive Reverse Voltage (Vrrm)	150V
Forward Current	16 A
Max Reverse Leakage Current (Ir)	0.005mA
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	65 ℃
	Show
Size-Length	10.29 mm
Size-Width	4.82 mm
Size-Height	9.27 mm
Product Lifecycle Status	Unknown
Packaging	Tube
Minimum Packing Quantity	50
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99
