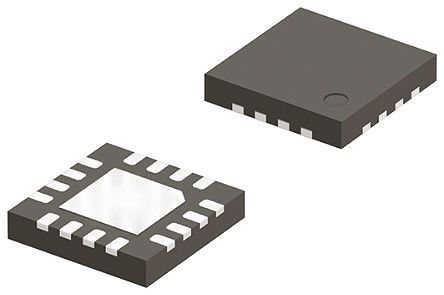

Image is for your reference only,please check specifications for details

NB7L14MNG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC25831564
Category:
Clock Buffer, Driver, PLL IC
Package:
QFN-16
Datasheet:
Datasheet 3D Model
Description:
Clock / Data Fanout Buffer, 7GHz, 1:4 Differential, LVPECL, 2.5V, 3.3V, QFN16, 3x3, 0.5P, 123-TUBE
Stock Locations:
Availability:
2,557 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 14.12

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

NB7L14MNG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	QFN-16
Frequency	8 GHz
Supply Voltage (DC)	2.38V (min)
Halogen Free Status	Halogen Free
Number of Outputs	4 Output
Number of Circuits	1 Circuit
Number of Positions	16 Position
Quiescent Current	105 mA
Duty Cycle	55 %
Maximum Duty Cycle	55 %
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.375V ~ 3.6V
Supply Voltage (Max)	2.625 V
Supply Voltage (Min)	2.375 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
