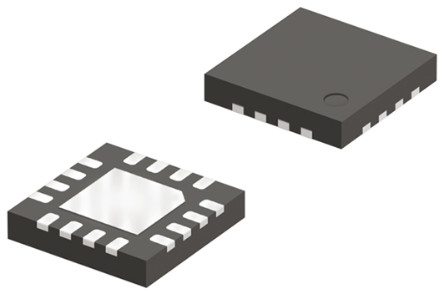

Image is for your reference only,please check specifications for details
- NCN8025MTTBG - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC39982714
-
Category:Interface IC, Interface Controller
-
Package:QFN-16
-
Datasheet:Datasheet 3D Model
-
Description:Smart Card Interface 27MHz T/R 16Pin QFN EP
-
Stock Locations:
-
Availability:1,475 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.11
Updated at 18/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The NCN8025/NCN8025A is a compact and cost effective single smart card interface. It is dedicated for 1.8 V / 3.0 V / 5.0 V smart card reader/writer applications. The card VCC supply is provided by a built in very low dropout and low noise LDO. The device is fully compatible with the ISO 7816-3, EMV 4.3, UICC and related standards including NDS and other STB standards (Nagravision, Irdeto...). It satisfies the requirements specifying conditional access into Set Top Boxes (STB) or Conditional Access Modules (CAM and CAS). This smart card interface IC is available in a QFN-24 package (NCN8025A) providing all of the industry standard features usually required for STB smart card interface. It is also offered in a very compact package profile, QFN-16 (NCN8025), satisfying the requirements of cost efficiency and space saving requested by CAM and SIM applications. For details regarding device implementation refer to the application note AND8003 available under request (please contact local sales office or representative).
- Features
- ---
- |
- Fully compatible with ISO-7816-3, EMV4.3, UICC and related standards including NDS and other STB standards (Nagravision, Irdeto ...)
- 3 Bidirectional Buffered I/O Level Shifters (C4, C7 and C8)(QFN-24)- 1 Bidirectional I/O Level Shifter (C7)for the QFN-16 compact version
- 1.8V, 3.0V or 5.0V +/- 5% Regulated Card Power Supply such as ICC ≤ 70 mA
- Regulator Power Supply: VDDP = 2.7V to 5.5V (@1.8V), 3.0V to 5.5V (@3.0V) & 4.85V to 5.5V (@5.0V)
- Independent Power Supply on Controller Interface: VDD = 2.7V to 5.5V
- Handle Class A, B & C smart cards
- Short Circuit Protection on all Card Pins
- Support up to 27 MHz input clock with internal division ratio 1/1, 1/2, 1/4, 1/8 through CLKDIV1 & CLKDIV2
- ESD Protection on Card Pins up to +8kV (Human Body Model)
- Activation/Deactivation Sequence (ISO7816 Sequencer)
- Fault Protection Mechanisms Enabling Automatic Device Deactivation in case of Overload, Overheating, Card Take-Off or Power Supply Drop-out (OCP, OTP, UVP)
- Interrupt Signal /INT for card presence and faults
- External Undervoltage Lockout Threshold adjustment on VDD (PORADJ pin) (Except QFN-16)
NCN8025MTTBG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | QFN-16 |
| Halogen Free Status | Halogen Free |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 1.8V,3V,5V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 0.8 mm |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
