NCP103AMX180TCG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC24783911
Category:
Voltage Regulator
Package:
UDFN-4
Datasheet:
Datasheet 3D Model
Description:

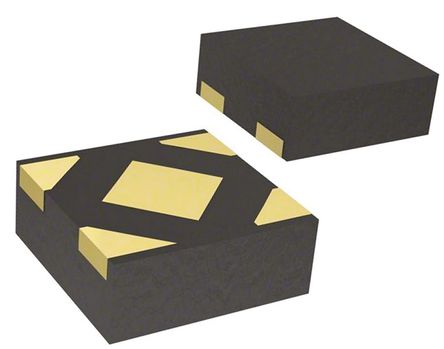

ON SEMICONDUCTOR NCP103AMX180TCG Fixed LDO Voltage Regulator, 1.7V to 5.5V In, 120mV Dropout, 1.8V/150mA Out, µDFN-4
Stock Locations:
Availability:
10,094 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.17

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This LDO NCP103AMX180TCG linear regulator from ON Semiconductor is used to manipulate the voltage level of your circuit. Its typical dropout voltage at current is 0.18@150mA|0.12@150mA|0.075@150mA|0.072@150mA|0.07@150mA|0.065@150mA V. It has an overall accuracy of ±1 %. This voltage regulation device"s single output can produce a current up to 0.15 A. By only needing an input voltage of 1.7 V with a maximum of 5.5 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 1.8 V, this is power management at its best. At a load regulation of 30mV and line regulation of 0.1%/V a constant current can be produced at the output of your circuit. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. The maximum dropout voltage is 0.235@150mA|0.165@150mA|0.125@150mA|0.12@150mA|0.12@150mA|0.11@150mA V. This voltage regulation device has a maximum operating temperature of 150 °C. Its polarity is positive.

Show

NCP103AMX180TCG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	UDFN-4
Number of Outputs	1 Output
Output Voltage	1.8 V
Output Current	150 mA
Supply Current	95 µA
Number of Positions	4 Position
Quiescent Current	95 µA
voltage rating	120 mV
Input Voltage (Max)	5.5 V
Input Voltage (Min)	1.7 V
Output Voltage (Min)	1.8 V
Output Current (Max)	0.15 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Input Voltage	5.5 V
	Show
Size-Length	1 mm
Size-Width	1 mm
Size-Height	0.55 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
