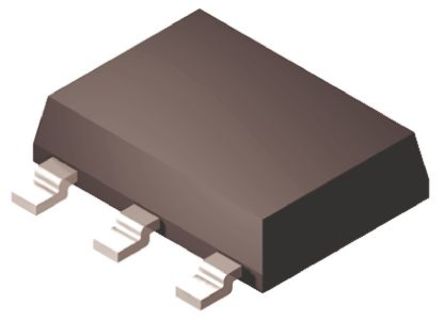

- NCP1075STBT3G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC9256929
-
Category:AC to DC Converter, AC/DC Power Module
-
Package:TO-261-4
-
Datasheet:Datasheet 3D Model
-
Description:NCP1075 Series 8.6V 100kHz 450mA Surface Mount High Voltage Switcher - SOT-223
-
Stock Locations:
-
Availability:3,816 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.22
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The NCP1075STBT3G is a High-voltage Switcher with 100kHz frequency for low power offline Switched Mode Power Supply (SMPS). It integrates fixed frequency current mode controller with a 700V MOSFET. It offers a high level of integration, including soft-start, frequency-jittering, short-circuit protection, skip-cycle, a maximum peak current set point, ramp compensation and a dynamic self-supply. When the output power demand diminishes, the IC automatically enters frequency fold-back mode and provides excellent efficiency at light loads. When the power demand reduces further, it enters into a skip mode to reduce the standby consumption down to a no load condition. Protection features includes a timer to detect an overload or a short-circuit event, overvoltage protection with auto-recovery and AC input line voltage detection. For improved standby performance, the connection of an auxiliary winding stops the DSS operation and helps to reduce input power consumption below 50mW at high line.
- Large creepage distance between high-voltage pins
- Skip-cycle operation at low peak currents only - No acoustic noise
- Dynamic self-supply - No need for an auxiliary winding
- Auto-recovery output short circuit protection with timer-based detection
- Auto-recovery overvoltage protection with auxiliary winding operation
- Frequency jittering for better EMI signature, including frequency foldback mode
- Frequency fold-back to improve efficiency at light load
- Internal temperature shutdown
- Internal 1ms soft-start
- <50mW No load input consumption
NCP1075STBT3G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | TO-261-4 |
| Supply Voltage (DC) | 2.20V (min) |
| Power Rating | 19 W |
| Halogen Free Status | Halogen Free |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 230 V |
| Output Current | 450 mA |
| Breakdown Voltage | 700 V |
| Number of Positions | 4 Position |
| Rise Time | 20 ns |
| Switching Frequency | 100 kHz |
| Duty Cycle | 68 % |
| Input Voltage (AC Max) | 250 v |
| Input Voltage (AC Min) | 100 v |
| Fall Time | 10 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | 150 ℃ |
| Supply Voltage (Max) | 8.6 V |
| Supply Voltage (Min) | 7.8 V |
| Input Voltage | 7.8V ~ 8.6V |
| Show | |
| Size-Length | 6.7 mm |
| Size-Width | 3.7 mm |
| Size-Height | 1.65 mm |
| Operating Temperature | -40℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
