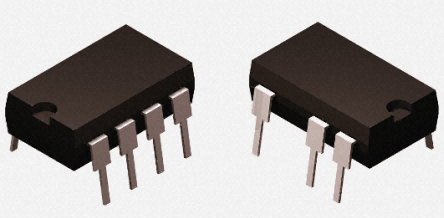

Image is for your reference only,please check specifications for details

NCP1337PG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC20039329
Category:
Power Management IC
Package:
PDIP-8
Datasheet:
Datasheet 3D Model
Description:
NCP1337PG, PWM Current Mode Controller, 500mA, 130kHz, -0.3 to 20V, 7Pin PDIP
Stock Locations:
Availability:
260 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.3

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* Valley switching/QuasiResonant Operationn * Soft-skip Mode with Minimum Switching Frequency for Standby * Current-Mode with Overpower Compensation * Auto-Recovery Short-Circuit Protection Independent of Auxiliary Voltage * Overvoltage Protection * Brown-Out Protection * Two Externally Triggerable Fault Comparators (one for a disable function, and the other for a permanent latch) * Internal 4.0 ms Soft-Start * 500 mA Peak Current Drive Sink Capability * 130 kHz Max Frequency * Internal Leading Edge Blanking * Internal Temperature Shutdown * Direct Optocoupler Connection * Dynamic Self-Supply with Levels of 12 V (On) and 10 V (Off) * SPICE Models Available for TRANsient and AC Analysis * These are Pb-Free Devices

Show

NCP1337PG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	7 Pin
Case/Package	PDIP-8
Frequency	130 kHz
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Input Voltage (DC)	11.0 V
Output Voltage	20 V
Output Current	500 mA
Number of Positions	8 Position
Rise Time	50 ns
Switching Frequency	130 kHz
Topology	Flyback
Thermal Resistance	100 ℃/W
Output Voltage (Max)	500 V
Fall Time	20 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	13 V
Supply Voltage (Max)	13 V
Supply Voltage (Min)	3.6 V
Input Voltage	11 V
	Show
Size-Length	10.16 mm
Size-Width	6.6 mm
Size-Height	3.44 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
