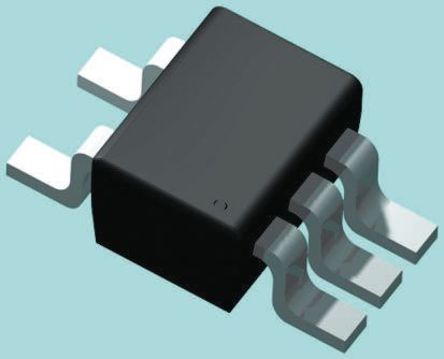

NCP1529ASNT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC1338495
Category:
DC to DC Converter
Package:
TSOT-23-5
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 2.7V to 5.5V Step Down Single-Out 0.9V to 3.9V 1A 5Pin TSOP T/R
Stock Locations:
Availability:
7 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.5

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCP1529ASNT1G is a high efficiency low ripple monolithic adjustable output voltage step-down Converter uses synchronous rectification to increase efficiency and reduce external part count. The device also has a built-in 1.7MHz (nominal) oscillator which reduces component size by allowing a small inductor and capacitors. Automatic switching PWM/PFM mode offers improved system efficiency additional features include integrated soft-start, cycle-by-cycle current limiting and thermal shutdown protection.
Up to 96% efficiency
Best-in-class ripple, including PFM mode
Synchronous rectification for higher efficiency
Low quiescent current 28µA
Thermal limit protection
Short-circuit protection
All pins are fully ESD protected
ESD sensitive device, take proper precaution while handling the device.

Show

NCP1529ASNT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TSOT-23-5
Operating Voltage	2.7V ~ 5.5V
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	0.9V ~ 3.9V
Output Current	1 A
Number of Channels	1 Channel
Number of Positions	5 Position
Quiescent Current	28 µA
Switching Frequency	1.7 MHz
Topology	Step-Down
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.7 V
Output Voltage (Max)	3.9 V
Output Voltage (Min)	900 mV
Output Current (Max)	300 mA
Output Current (Min)	1 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.7 V
Input Voltage	2.7V ~ 5.5V
	Show
Size-Length	3 mm
Size-Width	1.5 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
