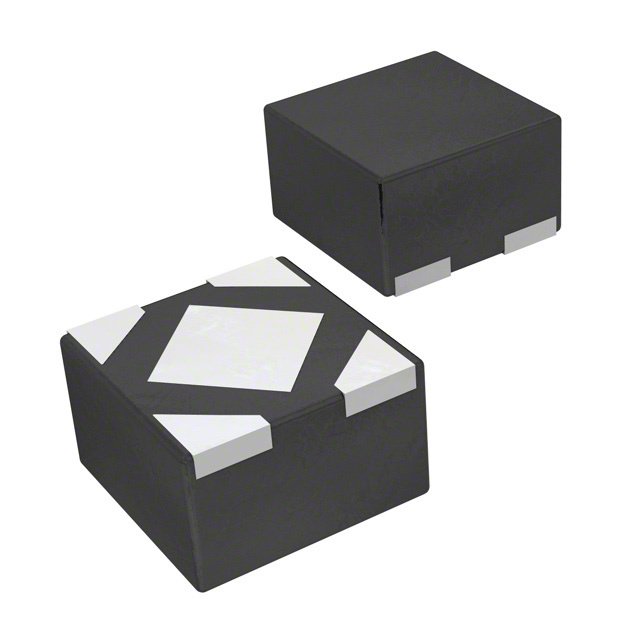

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCP160 is a linear regulator capable of supplying 250 mA output current. Designed to meet the requirements of RF and analog circuits, the NCP160 device provides low noise, high PSRR, low quiescent current, and very good load/line transients. The device is designed to work with a 1 F input and a 1 F output ceramic capacitor. It is available in two thickness ultra−small 0.35P, 0.65 mm x 0.65 mm Chip Scale Package (CSP) and XDFN−4 0.65P, 1 mm x 1 mm.
Features | | Benefits
---|---|---
| | | | |
Ultra Low Quiescent current 18µA
| |
Improved efficiency during light load conditions
Very Low Dropout 80mV@250mA
| |
Low power dissipation at full load
Ultra High PSRR 90dB at 1kHz, 20mA
| |
Excellent for power sensitive device like Wi-Fi module
Ultra Low Output Noise 10µVRMS
| |
Very well suited for noise sensitive application
Operating Input Voltage Range 1.9V to 5.5V
| |
Suitable for battery powered device
Available in CSP4 0.35P package
| |
Great for space constrains application

Show

NCP160AMX330TBG Specifications
