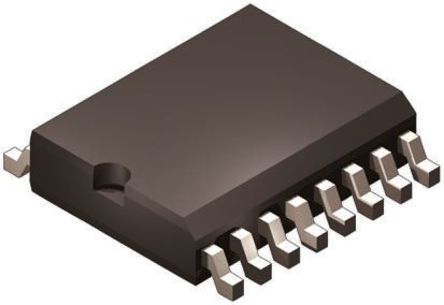

Image is for your reference only,please check specifications for details

ADM696ARZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC1052956
Category:
Power Monitor
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
μP Supv w/ Backup Battery Switchover, Adj Low Line V Monitor, Adj Watchdog Timer, 100mA Iout Processor Supervisor Adj 3V to 5.5V Automotive 16Pin SOIC W Tube
Stock Locations:
Availability:
244 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.26

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADM696 series Supervisory Circuit offers complete single chip solutions for power supply monitoring and battery control functions in microprocessor systems. These functions include µP reset, backup-battery switchover, watchdog timer, CMOS RAM write protection and power failure warning. The ADM696/ADM697 is fabricated using an advanced epitaxial CMOS process combining low power consumption (5mW), extremely fast chip enable gating (5ns) and high reliability. RESET assertion is guaranteed with VCC as low as 1V. In addition, the power switching circuitry is designed for minimal voltage drop thereby permitting increased output current drive of up to 100mA without the need for an external pass transistor. The power-on reset output function during power-up, power-down and brownout conditions. The RESET voltage threshold is adjustable using an external voltage divider. The RESET output remains operational with VCC as low as 1V.
Adjustable reset and watchdog timeout periods
Specified over-temperature
Adjustable low line voltage monitor
Power ok/reset time delay
Low switch on resistance
Automatic battery backup switching
Voltage monitor for power-fail or low-battery warning
Superior upgrade for MAX696/MAX697
600nA Standby current
ESD sensitive device. Electrostatic charges as high as 4000V readily accumulate on the human body and test equipment and can discharge without detection.

Show

ADM696ARZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	5.50V (max)
Power Rating	600 mW
Supply Current	1.95 mA
Number of Positions	16 Position
Power Dissipation	600 mW
Threshold Voltage	1.3 V
Output Current (Max)	20 mA
Reset Threshold Voltage (Min)	Adjustable
Reset Threshold Voltage (Max)	Adjustable
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	600 mW
Supply Voltage	3.5.5 VDC
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3 V
	Show
Size-Length	10.5 mm
Size-Width	7.6 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
