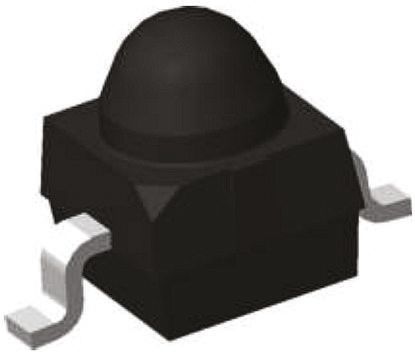

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The VSMB2020X01 is a High Speed Infrared Emitting Diode with high radiant power and high speed, moulded in clear, untinted plastic packages (with lens) for surface mounting (SMD). It has 940nm emitting diodes in GaAlAs (DH) technology and it is suitable for high pulse current operation.
VSMB2020X01 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | SMD |
| Operating Voltage | 1.15V ~ 1.6V |
| Rise/Fall Time | 0.015 µs |
| Number of Positions | 2 Position |
| Forward Voltage | 1.35 V |
| Wavelength | 940 nm |
| Viewing Angle | 12° |
| Peak Wavelength | 940 nm |
| Power Dissipation | 160 W |
| Rise Time | 15 ns |
| Test Current | 100 mA |
| Forward Current | 100 mA |
| Maximum Forward Voltage (Max) | 1.35 V |
| Forward Current (Max) | 100 mA |
| Fall Time | 15 ns |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 160 mW |
| Show | |
| Size-Height | 2.77 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
