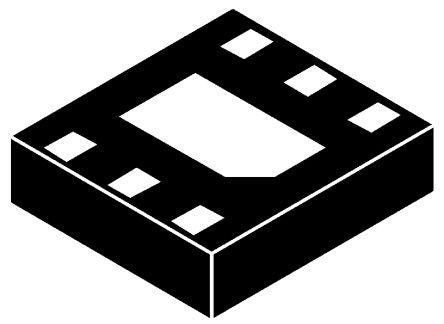

Image is for your reference only,please check specifications for details

NCP176AMX330TCG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC3108510
Category:
Voltage Regulator
Package:
XDFN-6
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCP176AMX330TCG Fixed LDO Voltage Regulator, 1.4V to 5.5V In, 110mV Dropout, 3.3V/500mA Out, XDFN-6
Stock Locations:
Availability:
267 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.77

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Never worry about components seeing unstable voltages again by implementing this NCP176AMX330TCG linear regulator manufactured by ON Semiconductor. Its typical dropout voltage at current is 5.6 V. It has an overall accuracy of 4.8 %. This voltage regulation device"s 26.1 outputs can produce a current up to 11.3@4.5V|25.1@10V A. Using the part will provide the power your application needs by requiring a voltage only of ±20 V and not exceeding a voltage of 10.3 V. With a single quad drain triple source output that has a voltage of 12@10 V V, this is power management at its best. A load regulation of 2.5 is necessary for providing a constant voltage level at your output. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This voltage regulation device has an operating temperature range of -55 °C to 150 °C. The maximum dropout voltage is Stg/Jun V.

Show

NCP176AMX330TCG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	XDFN-6
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	500 mA
Supply Current	90 µA
Quiescent Current	90 µA
voltage rating	110 mV
Input Voltage (Max)	5.5 V
Input Voltage (Min)	1.4 V
Output Voltage (Min)	3.3 V
Output Current (Max)	500 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±0.8 %
Input Voltage	5.5 V
	Show
Size-Length	1.2 mm
Size-Width	1.2 mm
Size-Height	0.4 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
