Description

The Bipolar Power Transistor is designed for low power audio amplifier and low current, high speed switching applications.
Features
---
|
High Collector-Emitter Sustaining Voltage -
VCEO(sus) = 100 Vdc (Min) MJE243, MJE253
High DC Current Gain @ IC = 200 mAdc
hFE = 40-200
hFE = 40-120 - MJE243, MJE253
Low Collector-Emitter Saturation Voltage -
VCE(sat) = 0.3 Vdc (Max) @ IC = 500 mAdc
High Current Gain Bandwidth Product -
fT = 40 MHz (Min) @ IC = 100 mAdc
Annular Construction for Low Leakages
ICBO = 100 nAdc (Max) @ Rated VCB
Pb-Free Packages are Available

Show

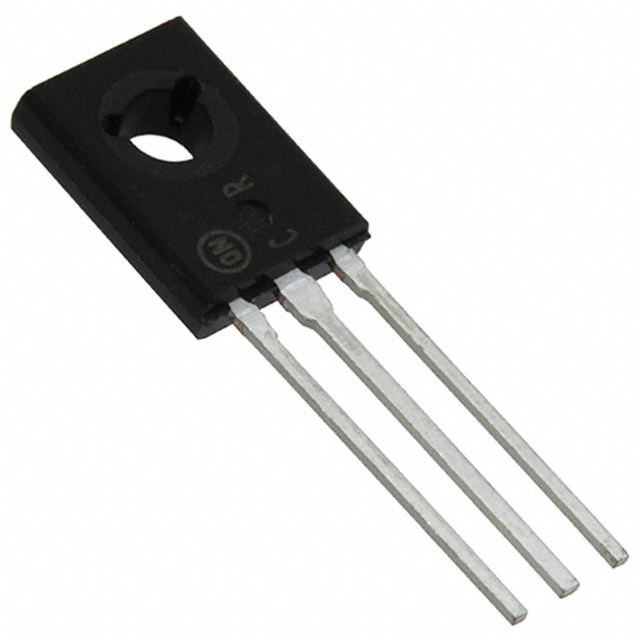

MJE243 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-225-3
Voltage Rating (DC)	100 V
Current Rating	4.00 A
Polarity	N-Channel
Power Dissipation	15 W
Gain Bandwidth Product	40 MHz
Breakdown Voltage (Collector to Emitter)	100 V
Continuous Collector Current	4A
hFE Min	40
hFE Max	180
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	65 ℃
Power Dissipation (Max)	15000 mW
	Show
Size-Length	7.74 mm
Size-Width	2.66 mm
Size-Height	11.04 mm
Material	Silicon
Product Lifecycle Status	Unknown
Packaging	Bulk
Minimum Packing Quantity	500
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99
