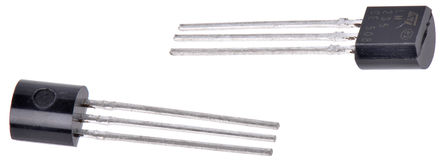

Image is for your reference only,please check specifications for details

LM235Z - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC1678145
Category:
Temperature Sensor
Package:
TO-92-3
Datasheet:
Datasheet 3D Model
Description:
LM235 Series 2.98V 5mA Through Hole Precision Temperature Sensor - TO-92
Stock Locations:
Availability:
771 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.22

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM235Z is a Precision Temperature Sensor which can be easily calibrated. This operates as a 2-terminal Zener and the breakdown voltage is directly proportional to the absolute temperature at 10mV/°K. The circuit has a dynamic impedance of less than 1R and operates within a range of current from 450µA to 5mA without alteration of its characteristics.
Directly calibrated in °K
1°C Initial accuracy
Less than 1R dynamic impedance

Show

LM235Z Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-92-3
Number of Positions	3 Position
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1.5 ℃
Supply Voltage	2.95V ~ 3.01V
Supply Voltage (Max)	3.04 V
Supply Voltage (Min)	2.92 V
	Show
Size-Width	4.2 mm
Size-Height	5.33 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
