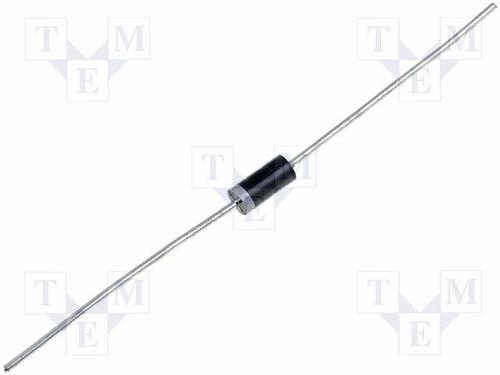

Image is for your reference only,please check specifications for details

P6KE15CA - Littelfuse
Manufacturer:
Littelfuse
ManyChip's Part#:
MC3823593
Category:
TVS Diode
Package:
DO-204AC-2
Datasheet:
Datasheet 3D Model
Description:
Trans Voltage Suppressor Diode, 600W, 12.8V V(RWM), Bidirectional, 1Element, Silicon, DO-204AC, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, DO-15, 2Pin
Stock Locations:
Availability:
2,200 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.16

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

P6KE Series Silicon Avalanche Diodes
* Glass passivated chip junction in DO-15 package
* Uni-directional and bi-directional
* Excellent clamping capability
* Low zener impedance
The P6KE Series is designed specifically to protect sensitive electronics equipment from voltage transients induced by lightning and other transient voltage events. These devices are ideal for the protection of I/O interfaces, Vcc bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.

Show

P6KE15CA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-204AC-2
Voltage Rating (DC)	15.0 V
Operating Voltage	12.8 V
Current Rating	28.8 A
Power Rating	600 W
Breakdown Voltage	14.3 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Power Dissipation	600 W
Clamping Voltage	21.2 V
Test Current	1 mA
Max Breakdown Voltage	15.8 V
Forward Current	28.8 A
Peak Pulse Power	600 W
Min Breakdown Voltage	14.3 V
Reverse Breakdown Voltage	14.3 V
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-55℃ ~ 175℃
Junction Temperature (Max)	175 ℃
	Show
Size-Length	7.6 mm
Size-Diameter	3.60 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
