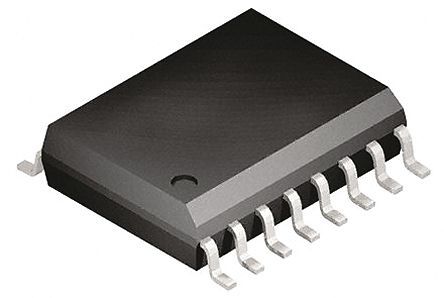

Image is for your reference only,please check specifications for details

NCP3163BPWG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC28626535
Category:
DC to DC Converter
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
NCP3163BPWG, Inverting DC-DC Converter, 3.4A, Adjustable, Maximum of 24V, 16Pin SOIC
Stock Locations:
Availability:
223 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.44

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCP3163 Series is a performance enhancement to the popular MC33163 and MC34163 monolithic DC−DC converters. These devices consist of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. This controller was specifically designed to be incorporated in step−down, step−up, or voltage−inverting applications with a minimum number of external components. The NCP3163 comes in an exposed pad package which can greatly increase the power dissipation of the built in power switch.
Features
• Output Switch Current in Excess of 3.0 A
• 3.4 A Peak Switch Current
• Frequency is Adjustable from 50 kHz to 300 kHz
• Operation from 2.5 V to 40 V Input
• Externally Adjustable Operating Frequency
• Precision 2% Reference for Accurate Output Voltage Control
• Driver with Bootstrap Capability for Increased Efficiency
• Cycle−by−Cycle Current Limiting
• Internal Thermal Shutdown Protection
• Low Voltage Indicator Output for Direct Microprocessor Interface
• Exposed Pad Power Package
• Low Standby Current
• NCV Prefix for Automotive and Other Applications Requiring Site and Change Control
• These are Pb−Free Devices

Show

NCP3163BPWG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Frequency	300 kHz
Supply Voltage (DC)	2.50V (min)
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	1V ~ 40V
Output Current	3.4 A
Switching Frequency	50kHz ~ 300kHz
Topology	Step-Up, Step-Down
Input Voltage (Max)	40 V
Input Voltage (Min)	2.5 V
Output Voltage (Max)	40 V
Output Voltage (Min)	1.25 V
Output Current (Max)	3.4 A
Output Current (Min)	200 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.5 V
Supply Voltage (Min)	2.5 V
Input Voltage	2.5V ~ 40V
	Show
Size-Length	10.45 mm
Size-Width	7.6 mm
Size-Height	2.55 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
