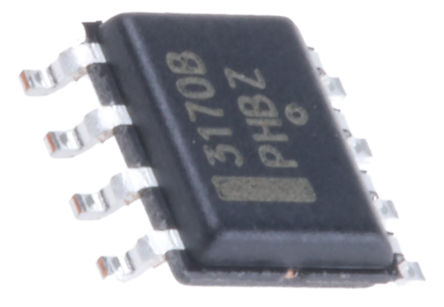

Image is for your reference only,please check specifications for details

NCP3170BDR2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC9454615
Category:
DC to DC Converter
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
NCP3170 Series 18V 3A 1MHz Synchronous PWM Switching Converter - SOIC-8
Stock Locations:
Availability:
528 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.86

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A 8-SOIC (0.154", 3.90mm Width)

Show

NCP3170BDR2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	0.8V ~ 5V
Output Current	3 A
Number of Positions	8 Position
Quiescent Current	2 mA
Switching Frequency	1 MHz
Topology	Step-Down
Input Voltage (Max)	18 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	5 V
Output Voltage (Min)	1.25 V
Output Current (Max)	3 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	4.5V ~ 18V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
