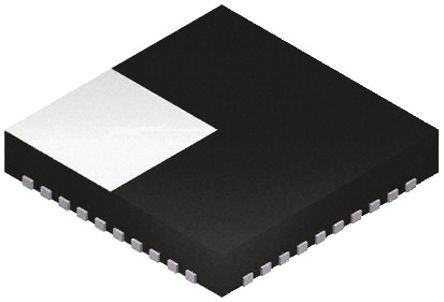

Image is for your reference only,please check specifications for details

NCP3232NMNTXG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC40616426
Category:
DC to DC Converter
Package:
QFN-40
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 4.5V to 21V Step Down Single-Out 0.6V 15A 40Pin QFN EP T/R
Stock Locations:
Availability:
258 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.81

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Adjust the voltage level of your devices with this NCP3232NMNTXG DC to DC converter from ON Semiconductor.

Show

NCP3232NMNTXG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	40 Pin
Case/Package	QFN-40
Number of Outputs	1 Output
Output Voltage	0.6 V
Output Current	15 A
Number of Positions	40 Position
Switching Frequency	550 kHz
Input Voltage (Max)	21 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	19.32 V
Output Voltage (Min)	600 mV
Output Current (Max)	15 A
Output Current (Min)	200 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	4.5V ~ 21V
	Show
Size-Length	6 mm
Size-Width	6 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
