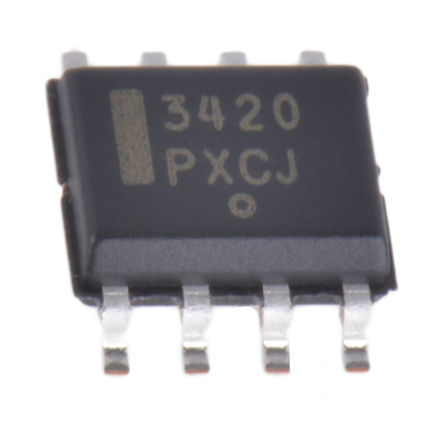

NCP3420DR2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC7599011
Category:
FET Driver
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
NCP Series 1.8Ω 13.2V Surface Mount MOSFET Driver with Dual Outputs - SOIC-8
Stock Locations:
Availability:
1,970 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.44

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

ON Semiconductor"s NCP3420DR2G power driver will help with fast switching within your circuit. This device has a maximum propagation delay time of 45 ns. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This gate driver has an operating temperature range of 0 °C to 85 °C. This device has a minimum operating supply voltage of 4.6 V and a maximum of 13.2 V.

Show

NCP3420DR2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	4.60V (min)
Rise/Fall Time	16ns, 11ns
Halogen Free Status	Halogen Free
Number of Outputs	2 Output
Number of Positions	8 Position
Rise Time	16 ns
Fall Time	11 ns
Fall Time (Max)	11 ns
Fall Time (Max)	16 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	4.6V ~ 13.2V
Supply Voltage (Max)	13.2 V
Supply Voltage (Min)	4.6 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	0℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
