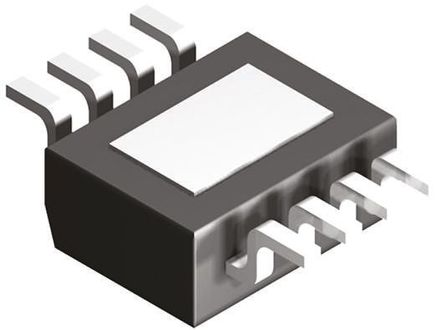

- DRV103H - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC21953863
-
Category:FET Driver
-
Package:HSOP-8
-
Datasheet:Datasheet 3D Model
-
Description:Peripheral Driver, PWM Solenoid, Valve, Coils, 1 Output, 8V to 32V supply, 40V/3A out, HSOP-8
-
Stock Locations:
-
Availability:235 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.43
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The DRV103H is a DMOS low-side Power Switch employs a pulse-width modulated (PWM) output. Its rugged design is optimized for driving electromechanical devices. The DRV103 is also ideal for driving thermal devices such as heaters, coolers and lamps. PWM operation conserves power and reduces heat rise, resulting in higher reliability. In addition, adjustable PWM allows fine control of the power delivered to the load. DC-to-PWM output delay time and oscillator frequency are also externally adjustable. The driver can be set to provide a strong initial closure, automatically switching to a "soft" hold mode for power savings. A resistor, analogue voltage or Digital-to-analogue (D/A) converter can control the duty cycle. An output OK flag indicates when thermal shutdown or over-current occurs.
- Digitally controlled input
- PWM output
- Adjustable delay and duty cycle
- Thermal and current limit shutdown with status ok indicator flag
- Green product and no Sb/Br
- ESD sensitive device, take proper precaution while handling the device.
DRV103H Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | HSOP-8 |
| Frequency | 0.1 MHz |
| Supply Voltage (DC) | 8.00V (min) |
| Number of Outputs | 1 Output |
| Output Voltage | 40 V |
| Output Current | 3 A |
| Number of Channels | 1 Channel |
| Rise Time | 2000 ns |
| Output Current (Max) | 3 A |
| Fall Time | 2000 ns |
| Fall Time (Max) | 2000 ns |
| Fall Time (Max) | 2000 ns |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 8V ~ 32V |
| Supply Voltage (Max) | 32 V |
| Supply Voltage (Min) | 8 V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 3.9 mm |
| Size-Height | 1.55 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
