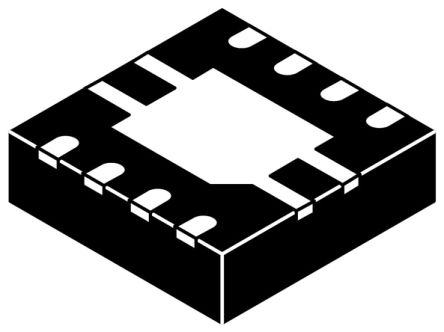

NCP59800BMNADJTBG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC38931803
Category:
Voltage Regulator
Package:
DFN-8
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCP59800BMNADJTBG LDO Voltage Regulator, Adjustable, 2.2V to 6V input, 200mV drop., 1A out, DFN-8 New
Stock Locations:
Availability:
1,934 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.56

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCP59800BMNADJTBG is a CMOS RF low dropout (LDO) linear voltage regulator with enable function in 8 pin DFN package. It offers high power supply ripple rejection (PSRR) and ultra low output noise. This LDO uses an advanced BiCMOS process to achieve very good electrical performance. It is an ideal choice for noise sensitive analogue RF front ends used in telecom equipment, telecom infrastructure, audio and high speed I/F (PLL/VCO).
Adjustable output voltage of 0.8V to 5V
Operating input voltage range from 2.2V to 6V
Quiescent current of 60µA and stable with small 4.7µF ceramic capacitors
Low dropout of 200mV at 1A output current
±2.5% VOUT accuracy across load/line/temperature
Very low noise of 15µVrms from 100Hz to 100KHz
Overcurrent and thermal shutdown protection
Output voltage accuracy of ±0.3% and shutdown current of 0.2µA
Power supply rejection ratio of 27dB at f = 1MHz and output noise voltage of 15 x VOUT µVrms
Operating temperature range from -40°C to +125°C

Show

NCP59800BMNADJTBG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	DFN-8
Number of Outputs	1 Output
Output Voltage	0.8V ~ 5V
Output Current	1 A
Supply Current	450 µA
Number of Positions	8 Position
Quiescent Current	0.06 mA
voltage rating	200 mV
Input Voltage (Max)	6 V
Input Voltage (Min)	2.2 V
Output Voltage (Max)	5 V
Output Voltage (Min)	800 mV
Output Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	6 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2016/06/20
