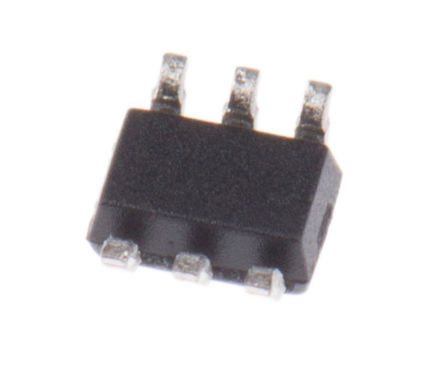

Image is for your reference only,please check specifications for details

NCS199A1SQT2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC17569096
Category:
Amplifier, Buffer IC
Package:
SOT-363-6
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCS199A1SQT2G Current Sense Amplifier, Voltage Output, 1 Amplifier, 60μA, SC-70, 6Pins, -40℃, 125℃
Stock Locations:
Availability:
1,394 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.04

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCS199A1, NCS199A2 and NCS199A3 are voltage output current shunt monitors that can measure voltage across shunts at common−mode voltages from −0.3 V to 26 V, independent of supply voltage. Three fixed gains are available: 50 V/V, 100 V/V or 200 V/V. The low offset of the zero−drift architecture enables current sensing with maximum drops across the shunt as low as 10 mV full−scale. The devices can operate from a single +2.7 V to +26 V power supply, drawing a maximum of 100µA of supply current. All versions are specified over the extended operating temperature range (–40°C to +125°C).
Features | | Benefits
---|---|---
| | | | |
Wide common mode input range -0.3 V to 26 V
| |
High-Side Current Sensing for High Voltage Systems
Supply voltage range from 2.7 V to 26 V
| |
Flexible System Supply Voltage
Low offset voltage ±150µV Max
| |
Low Value Current Sense Resistors for Better Power Efficiency
Low offset drift
| |
Temperature Sensitive Applications

Show

NCS199A1SQT2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-363-6
Supply Current	65 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	6 Position
Common Mode Rejection Ratio	115 dB
Bandwidth	100 kHz
Input Offset Voltage	5 µV
Input Bias Current	60 µA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	100 kHz
Minimum CMRR Range	97 dB
Supply Voltage (Max)	26 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
