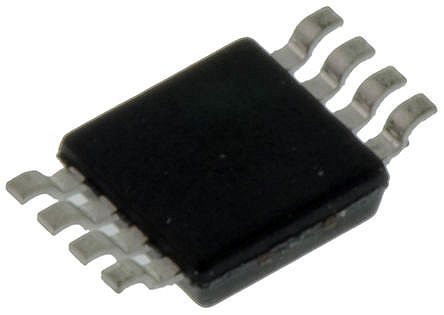

NCS20072DTBR2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC26035803
Category:
Operational Amplifier, OP Amp IC
Package:
TSSOP-8
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCS20072DTBR2G Operational Amplifier, 2 Amplifier, 3MHz, 2.4V/µs, 2.7V to 36V, TSSOP, 8Pins
Stock Locations:
Availability:
2,706 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.85

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCS20072DTBR2G is a dual operational amplifier with rail to rail output in 8 pin TSSOP package. The rail to rail operation enables the user to make optimal use of entire supply voltage range while taking advantage of 3MHz bandwidth. The device can operate on supply voltages as low as 2.7V over temperature range of -40°C to 125°C. At 2.7V supply, the high bandwidth provides a slew rate of 2.8µV/s while only consuming 405µA of quiescent current per channel. The wide supply range allows NCS20072DTBR2G to run on supply voltages as high as 36V making it ideal for a broad range of applications. Since this is a CMOS device, high input impedance and low bias currents make it ideal for interfacing to a wide variety of signal sensors.
Low current consumption and functional over wide temperature range
Operating voltage range from 2.7V to 36V (single supply) and ±1.35V to ±18V (split supply)
Low input bias current of 5pA at VS = 2.7V and input offset current of 2pA at VS = 2.7V
Input offset voltage of 1.3mV at VS = 2.7V
Common mode rejection ratio (CMRR) of 110dB (VCM = VSS + 0.2 V to VDD - 1.35V) at VS = 2.7V
Open loop voltage gain of 118dB at VS = 2.7V
Output current capability of 70mA (op-amp sinking current) & 50mA (sourcing current) at VS = 2.7V
Phase margin of 50° (CL = 25pF) and gain margin of 14dB (CL = 25pF) at VS = 2.7V
Settling time of 0.6µs (settling time to 0.1%) at VS = 2.7V
Power supply rejection ratio (PSRR) of 135dB (no load) at VS = 2.7V

Show

NCS20072DTBR2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	TSSOP-8
Output Current	70 mA
Supply Current	465 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Power Dissipation	0.2 W
Common Mode Rejection Ratio	60 dB
Bandwidth	3 MHz
Slew Rate	2.40 V/μs
Gain Bandwidth Product	3.2 MHz
Input Offset Voltage	1.3 mV
Input Bias Current	2 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	200 mW
Minimum CMRR Range	60 dB
Supply Voltage	2.7V ~ 36V
Supply Voltage (Max)	36 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	3.1 mm
Size-Width	4.5 mm
Size-Height	1.1 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
