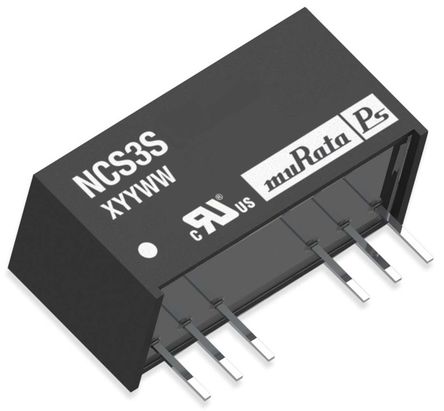

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCS3S1203SC is an isolated 4:1 input single-output DC/DC Converter offers a single output voltage from input voltage range of 12V. The device is housed with a standard pin-out. It also offers operating temperature range -40 to 85°C with derating.
No electrolytic capacitors
Continuous short circuit protection
1.5kVDC Isolation hi pot test
10% Maximum load
77% Typical efficiency
55mVp-p Typical ripple and noise
0.7ms Start-up time

Show

NCS3S1203SC Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	6 Pin
Case/Package	DIP-8
Power Rating	3 W
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	0.25 A
Output Power	2.31 W
Isolation Voltage	1.5 kV
Input Voltage (Max)	36 V
Input Voltage (Min)	9 V
Input Voltage (DC Max)	36 V
Input Voltage (DC Min)	9 v
Output Current (Max)	700 mA
Input Current (Min)	250 mA
Input Power (Max)	3 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	9V ~ 36V
	Show
Size-Length	21.95 mm
Size-Width	9.45 mm
Size-Height	11.25 mm
Weight	4.4 g
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Box
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
