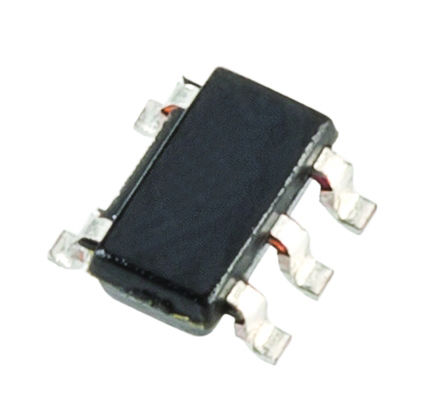

- NCS7101SN2T1G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC37219197
-
Category:Operational Amplifier, OP Amp IC
-
Package:TSOT-23-5
-
Datasheet:Datasheet 3D Model
-
Description:NCS Series 1.2V/us 10V SMT Style 2 Rail-to-Rail Operational Amplifier - SOT-23
-
Stock Locations:
-
Availability:296 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.56
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- NCS7101, 10V, Low Bias Current, Rail-Rail I/O, Operational Amplifier, ON Semiconductor
- The ON Semiconductor NCS7101 Op Amps provide rail-to-rail operation on both the input and output. Output can swing within 50 mV of each rail and enables you to make full use of the entire supply voltage range.
- Designed to work at low supply voltages (1.8 V and ground), yet can operate with a supply of up to 10 V and ground.
- 1.0 pA Input Bias Current
- Unity Gain Bandwidth of 1.0 MHz at 5.0 V, 0.9 MHz at 1.8 V
- Output Voltage Swings Within 50 mV of Both Rails @ 1.8 V
- No Phase Reversal on the Output for Over-Driven Input Signals
- Input Offset Trimmed to 1.0 mV
- Low Supply Current (ID = 1.0 mA)
- ESD Protected Inputs Up to 2.0 kV
NCS7101SN2T1G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | TSOT-23-5 |
| Halogen Free Status | Halogen Free |
| Output Current | 140 mA |
| Supply Current | 1.13 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 5 Position |
| Power Dissipation | 364 mW |
| Common Mode Rejection Ratio | 65 dB |
| Bandwidth | 1 MHz |
| Slew Rate | 1.20 V/μs |
| Gain Bandwidth Product | 1 MHz |
| Input Offset Voltage | 600 µV |
| Input Bias Current | 1 pA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 1 MHz |
| Power Dissipation (Max) | 364 mW |
| Minimum CMRR Range | 65 dB |
| Supply Voltage | 1.8V ~ 10V |
| Supply Voltage (Max) | 10 V |
| Supply Voltage (Min) | 1.8 V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 1.5 mm |
| Size-Height | 1 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
