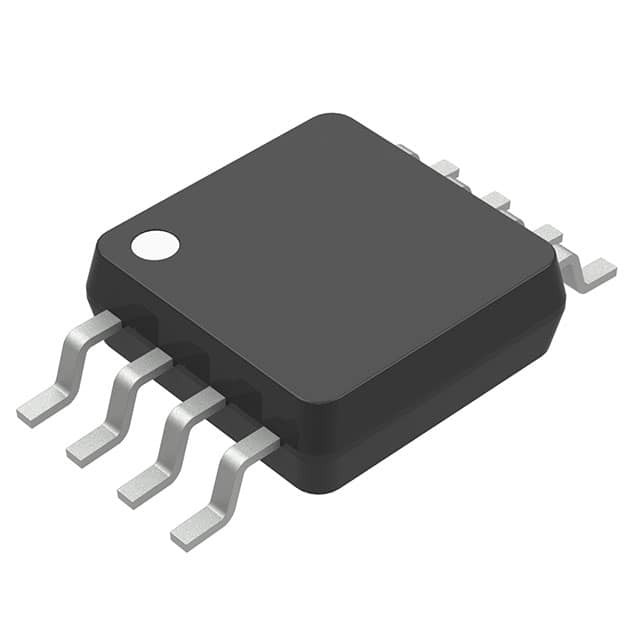

Image is for your reference only,please check specifications for details
- NCV20072DMR2G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC64351264
-
Category:Amplifier, Buffer IC
-
Package:Micro-8
-
Datasheet:Datasheet 3D Model
-
Description:Op Amp Dual GP R-R O/P 36V Automotive 8Pin MSOP T/R
-
Stock Locations:
-
Availability:297 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.38
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The NCS2007x series operational amplifiers provide rail−to−rail output operation, 3 MHz bandwidth, and are available in single, dual, and quad configurations. Rail−to−rail operation enables the user to make optimal use of the entire supply voltage range while taking advantage of 3 MHz bandwidth. The NCS2007x can operate on supply voltages as low as 2.7 V over the temperature range of −40°C to 125°C. At a 2.7 V supply, the high bandwidth provides a slew rate of 2.8 V/µs while only consuming 405 µA of quiescent current per channel. The wide supply range allows the NCS2007x to run on supply voltages as high as 36 V, making it ideal for a broad range of applications. Since this is a CMOS device, high input impedance and low bias currents make it ideal for interfacing to a wide variety of signal sensors. The NCS2007x devices are available in a variety of compact packages. Automotive qualified options are available under the NCV prefix.
- Features | | Benefits
- ---|---|---
- | | | | |
- Wide Supply Range: 2.7 V to 36 V
- | |
- Wide supply range suitable for a wide variety of applications
- Rail−To−Rail Output
- | |
- Wide output range
- Wide Bandwidth: 3 MHz typical at VS = 2.7 V
- | |
- Compatible with high speed signals up to 3 MHz
- High Slew Rate: 2.8 V/s typical at VS = 2.7 V
- | |
- High large signal bandwidth
- Low Supply Current: 405 A per channel at VS = 2.7 V
- | |
- Low current consumption
- Low Input Bias Current: 5 pA typical
- | |
- High input impedance
- Wide Temperature Range: −40°C to 125°C
- | |
- Functional over wide temperature range
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- | |
- Meets automotive standards
NCV20072DMR2G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | Micro-8 |
| Output Current | 60mA @5V |
| Supply Current | 465 µA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Power Dissipation | 0.2 W |
| Common Mode Rejection Ratio | 145 dB |
| Gain Bandwidth Product | 3.2 MHz |
| Input Offset Voltage | 1.3 mV |
| Input Bias Current | 2 nA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 200 mW |
| Minimum CMRR Range | 60 dB |
| Supply Voltage (Max) | 36 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
