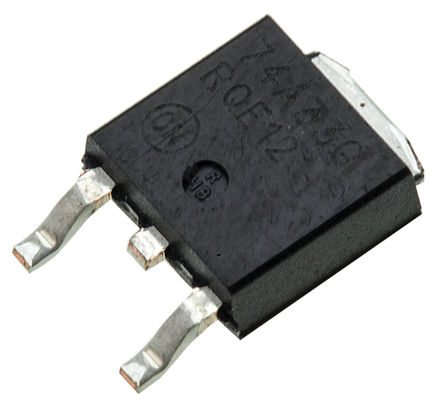

Image is for your reference only,please check specifications for details

NCV4274ADT33RKG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC15634438
Category:
Voltage Regulator
Package:
TO-252-3
Datasheet:
Datasheet 3D Model
Description:
NCV4274ADT33RKG, Single Linear Voltage Regulator, 400mA 3.3V, 2%, 3Pin DPAK
Stock Locations:
Availability:
286 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.11

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCV4274ADT33RKG is a precision micro-power Fixed LDO Voltage Regulator with LDO regulator case. The output voltage is accurate within ±2% depending on the version with a maximum dropout voltage of 0.5V with an input up to 40V. Low quiescent current is a feature drawing only 150µA with a 1mA load. The regulator is protected against reverse battery, short circuit and thermal overload conditions. The device can withstand load dump transients making it suitable for use in automotive environments.
Fault protection
Very low dropout voltage

Show

NCV4274ADT33RKG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	400 mA
Supply Current	250µA ~ 45mA
Number of Positions	3 Position
Quiescent Current	0.15 mA
voltage rating	1.27 V
Input Voltage (Max)	40 V
Input Voltage (Min)	4.5 V
Output Voltage (Min)	3.3 V
Output Current (Max)	0.4 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2 %
Input Voltage	4.5V ~ 40V
	Show
Size-Length	6.73 mm
Size-Width	6.22 mm
Size-Height	2.38 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
