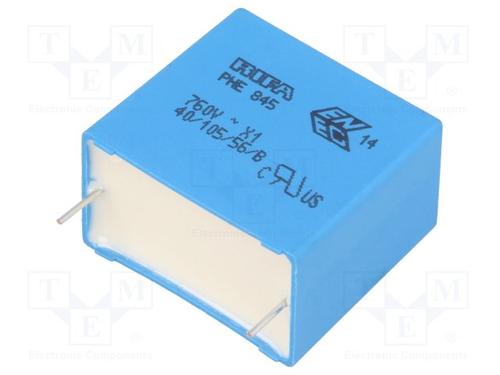

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The PHE845 series capacitors from Kemet are radial leaded, class X1 metalized polypropylene film EMI suppression capacitors. These capacitors are made of metalized polypropylene film encapsulated with self extinguishing resin in a box of material meeting the requirements of UL94 V-0 standard. It is used as an electromagnetic interference (EMI) suppression filter in across the line applications requiring X1 safety classification and suitable for use in situations where failure of the capacitor would not lead to danger of electric shock.
- Capacitance values ranges from 0.01µF to 1µF
- Voltage rating is 760VAC at 50/60Hz
- Lead spacing of 22.5mm to 37.5mm
- Available in ±10%, ±20% tolerance
- Operating temperature range from -40˚C to 105˚C
- ENEC, UL, cUL approved
- Self healing properties
- 100% screening factory test at 4250VDC
PHE845VF6330MR06L2 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | - |
| Pin Pitch | 27.5 mm |
| Voltage Rating (DC) | 1500 V |
| Voltage Rating (AC) | 760 V |
| Capacitance | 0.33 µF |
| Capacitance Tolerance | ±20 % |
| Part Family | PHE845 |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Height | 29 mm |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
