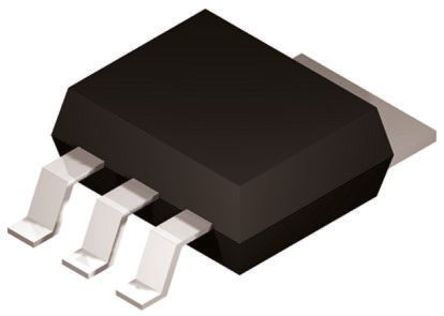

Image is for your reference only,please check specifications for details
- NCV8674DS120G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC13967858
-
Category:Voltage Regulator
-
Package:TO-263-3
-
Datasheet:Datasheet 3D Model
-
Description:NCV8674DS120G, LDO Voltage Regulator, 350mA, 12V +/-2%, 5.5 to 45Vin, 3Pin D2PAK
-
Stock Locations:
-
Availability:243 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.78
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * 5.0 V and 12 V Output Voltage Options with 2.0% Output Accuracy, Over Full Temperature Range * 40 A Maximum Quiescent Current at IOUT = 100 A * 600 mV Maximum Dropout Voltage at 350 mA Load Current * Wide Input Voltage Operating Range of 5.5 V to 45 V * Internal Fault Protection -42 V Reverse Voltage Short Circuit/Overcurrent Thermal Overload * AEC-Q100 Qualified
NCV8674DS120G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-263-3 |
| Number of Outputs | 1 Output |
| Output Voltage | 12 V |
| Output Current | 350 mA |
| Number of Positions | 3 Position |
| Quiescent Current | 42 µA |
| voltage rating | 0.3V @350mA |
| Input Voltage (Max) | 45 V |
| Input Voltage (Min) | 12.5 V |
| Output Current (Max) | 350 mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±2 % |
| Input Voltage | ≤45 V |
| Show | |
| Size-Length | 10.24 mm |
| Size-Width | 9.347 mm |
| Size-Height | 4.572 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Rail, Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
