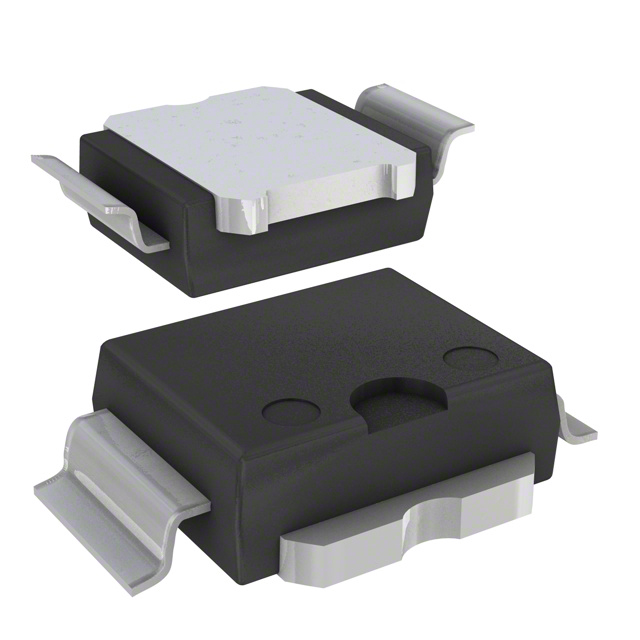

Image is for your reference only,please check specifications for details
- PD55008 - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC245393933
-
Category:Transistor
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:UHF BAND, Si, N-CHANNEL, RF POWER, MOSFET, PLASTIC, POWER, SO-10RF, 2Pin
-
Stock Locations:
-
Availability:293 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **HF to 2000 MHz Class AB Common Source - PowerSO-10RF**
- **VHF / UHF radio and digital cellular BTS applications**
- **HF to 2000MHz class AB common source - PowerFLAT**
- VHF / UHF radio applications
- **HF to 2000MHz class AB common cource - ceramic packages**
- **UHF TV and digital cellular BTS applications**
- **2 to 400MHz class AB common source N channel MOSFETs**
- HF / SSB, FM / VHF broadband applications
- **2 to 30MHz class AB linear, common emitter, HF / SSB**
PD55008 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 2 Pin |
| Case/Package | PowerSO-10 |
| Frequency | 500 MHz |
| Polarity | N-Channel |
| Power Dissipation | 52.8 W |
| Breakdown Voltage (Drain to Source) | 40.0 V |
| Breakdown Voltage (Gate to Source) | ±20.0 V |
| Continuous Drain Current (Ids) | 4.00 A |
| Output Power | 8 W |
| Gain | 17 dB |
| Test Current | 150 mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Voltage Rating | 40 V |
| Show | |
| Size-Length | 7.5 mm |
| Size-Width | 9.4 mm |
| Size-Height | 3.5 mm |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
