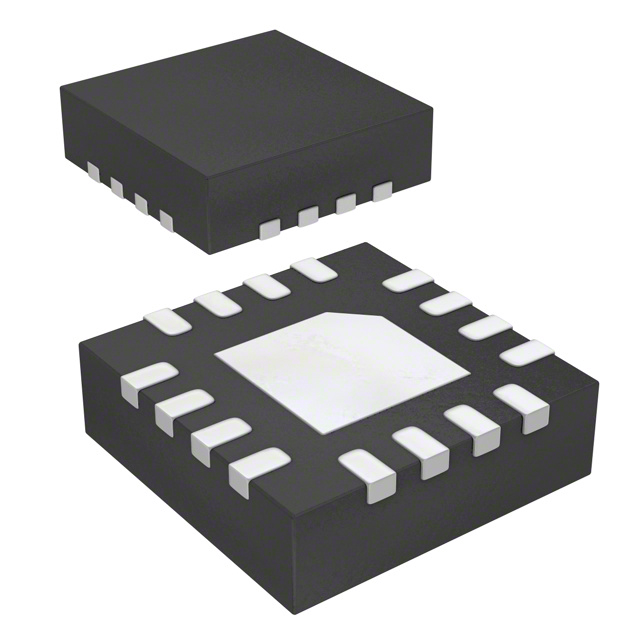

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Product Details
The HMC347ALP3E is a broadband high isolation non-reflective GaAs pHEMT SPDT switch in low cost leadless QFN surface mount plastic package. Covering DC to 14 GHz, the switch offers high isolation and low insertion loss. The switch features >54 dB isolation up to 3 GHz and >44 dB isolation up to 13 GHz. The switch operates using complementary negative control voltage logic lines of -5/0V and requires no bias supply.
Applications
Basestation infrastructure
Fiber optics and broadband telecom
Microwave radio and VSAT
Military radios, Radar, and ECM
Test instrumentation
### Features and Benefits
High isolation:
>54 dB up to 3 GHz
>44 dB up to 10 GHz
Low insertion loss: 1.8 dB at 10 GHz
Non-reflective design
3×3 mm QFN SMT package

Show

HMC347ALP3E Specifications
