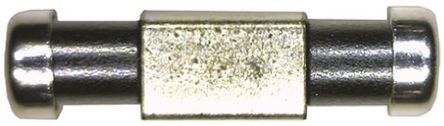

Image is for your reference only,please check specifications for details

NFE61PT101Z1H9L - muRata
Manufacturer:
muRata
ManyChip's Part#:
MC5324470
Category:
RFI Shielding
Package:
2606
Datasheet:
Datasheet 3D Model
Description:
MURATA NFE61PT101Z1H9L Power Line Filter, 100pF, 50V, 2A, EMI, RFI, SMD
Stock Locations:
Availability:
244 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.27

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NFE61PT101Z1H9L is a Power Line Filter offers large rated current of 2A and low voltage drop due to small DC resistance are suitable for DC power line use. The T-type circuit EMI suppression filter has feed-through capacitor realizes excellent high frequency characteristics and suitable for use in general applications. The structure incorporates built-in ferrite beads which minimize resonance with surrounding circuits.
REACH compliant
1000MR Minimum insulation resistance
Feed through chip EMI filters
-40 to 85°C Operating temperature range

Show

NFE61PT101Z1H9L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	2606
Voltage Rating (DC)	50.0 V
Current Rating	2 A
Insulation Resistance	1.00 GΩ
Capacitance	100 pF
Capacitance Tolerance	±30 %
Number of Channels	1 Channel
Shielding	No
Current Rating (Max)	2 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (Max)	50 VDC
Voltage Rating	50 V
	Show
Size-Length	6.8 mm
Size-Width	1.6 mm
Size-Height	1.6 mm
Dielectric Material	Ceramic
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
