**NL27W Series, ON Semiconductor**
CMOS Logic gates with LVTTL compatible inputs and outputs, offering higher speed and greater drive capability than 74LCX devices

Show

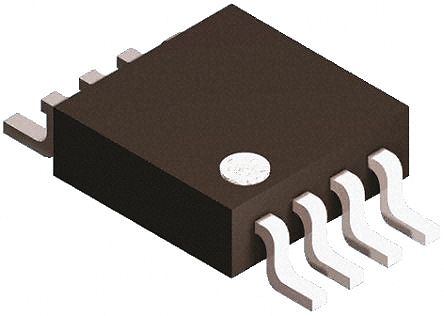

NL27WZ126USG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	US-8
Supply Voltage (DC)	5.00 V, 5.50 V (max)
Capacitance	2.5 pF
Halogen Free Status	Halogen Free
Number of Outputs	2 Output
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Number of Bits	2 Bit
Power Dissipation	0.25 W
Quiescent Current	1 µA
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	250 mW
Supply Voltage	1.65V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.65 V
	Show
Size-Length	2.4 mm
Size-Width	2.1 mm
Size-Height	0.8 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
