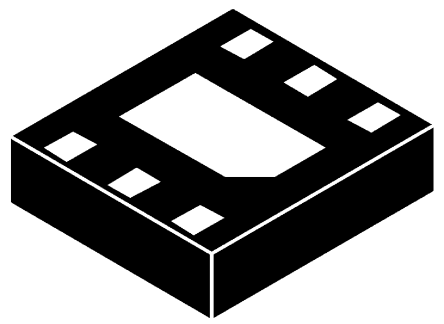

Image is for your reference only,please check specifications for details
- NLAS5123MNR2G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC87318875
-
Category:Analog Switch Ic, Analog Switch Multiplexer
-
Package:WDFN-6
-
Datasheet:Datasheet 3D Model
-
Description:NLAS5123MNR2G — ИС аналогового мультиплексора-коммутатора, одноканальный SPDT, напряжение 1.65–5.5В, корпус WDFN, 6 выводов
-
Stock Locations:
-
Availability:1,524 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.76
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Одноканальная микросхема-переключатель 2:1, 1 Ом, корпус 6-WDFN (1,2x1,0)
NLAS5123MNR2G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | WDFN-6 |
| Halogen Free Status | Halogen Free |
| Supply Current | 500 nA |
| Number of Circuits | 1 Circuit |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 55 MHz |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 1.65 V |
| Show | |
| Size-Length | 1.2 mm |
| Size-Width | 1 mm |
| Size-Height | 0.75 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
