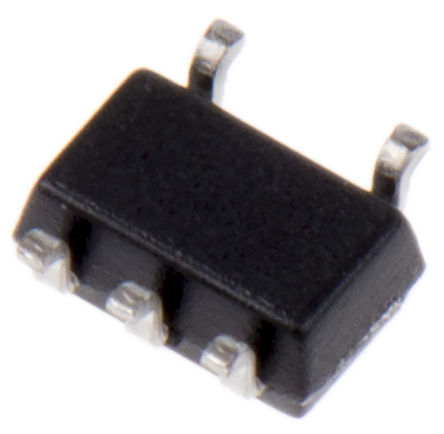

Image is for your reference only,please check specifications for details

NLSV1T34DFT2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC1521593
Category:
Voltage Level Translator IC
Package:
SC-70-5
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NLSV1T34DFT2G Voltage Level Translator, 1Input, 3.3ns, 900mV to 4.5V, SOT-353-5
Stock Locations:
Availability:
9,453 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.6

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ON Semiconductor NLSV1T34DFT2G level translator can control and allow the proper input voltage into your electronic circuits. With a 3-state output, this is power management at its best. This level shifter has an operating temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 0.9 V, while its maximum is 4.5 V.

Show

NLSV1T34DFT2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SC-70-5
Supply Voltage (DC)	4.50V (max)
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	5 Position
Number of Bits	1 Bit
Quiescent Current	2 µA
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Number of Output Channels	1 Channel
Supply Voltage	0.9V ~ 4.5V
Supply Voltage (Max)	4.5 V
	Show
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
