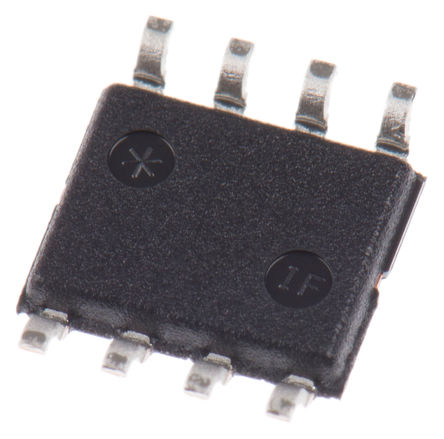

NLSX4373DR2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC3156625
Category:
Voltage Level Translator IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NLSX4373DR2G Voltage Level Translator, Bidirectional, 2Input, 1mA, 20ns, 1.5V to 5.5V, SOIC-8
Stock Locations:
Availability:
221 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.5

Updated at 25/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NLSX4373DR2G is a 2-bit 20Mbps dual-supply bidirectional Auto Sensing Translator that does not requires a directional control pin. The VCC I/O and VL I/O ports are designed to track two different power supply rails, VCC and VL respectively. The VCC supply rail is configurable from 1.5 to 5.5V while VL supply rail is configurable to 1.5 to 5.5V. This allows voltage logic signals on the VL side to be translated into lower, higher or equal value voltage logic signals on the VCC side and vice-versa. The NLSX4373 translator has open-drain outputs with integrated 10k pull-up resistors on the I/O lines. The integrated pull-up resistors are used to pull-up the I/O lines to either VL or VCC. It is an excellent match for open-drain applications such as the I²C communication bus.
High-speed with 20Mbps guaranteed date rate
Low bit-to-bit skew
Enable input and i/o lines have overvoltage tolerant (OVT) to 5.5V
Nonpreferential powerup sequencing
Integrated 10k pull-up resistors

Show

NLSX4373DR2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	1.50V (min)
Halogen Free Status	Halogen Free
Output Current	1 mA
Number of Circuits	1 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Number of Bits	2 Bit
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Number of Output Channels	1 Channel
Supply Voltage	1.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.5 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
