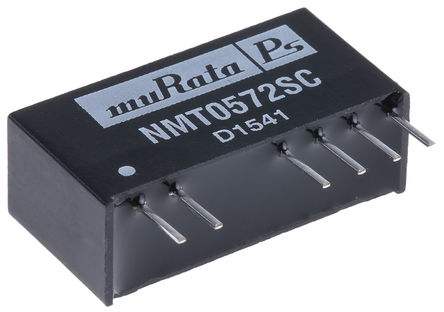

Image is for your reference only,please check specifications for details

NMT0572SC - muRata
Manufacturer:
muRata
ManyChip's Part#:
MC84782400
Category:
DC to DC Converter, DC/DC Converter
Package:
SIP-8
Datasheet:
Datasheet 3D Model
Description:
Module DC-DC 5Vin 3Out -24V/-48V/-72V 0.126A/0.063A/0.042A 3W 6Pin SIP Tube
Stock Locations:
Availability:
66 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 17.05

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NMT0572SC is a 3-output 3W board-mount isolated DC/DC Converter designed for use with telecommunications circuits requiring an on board supply for the -72V RING-TIP connection service generated from a nominal 5VDC input supply rail. The device also offers battery level voltages of -48V for access control and data pump ICs.
Power sharing on outputs
Industrial temperature range
Internal SMD construction
Toroidal magnetics
No external components required
1kVDC Input/output isolation
Power density 1.65W/cm³
85mA Typical ripple current
65pF Isolation capacitance

Show

NMT0572SC Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	6 Pin
Case/Package	SIP-8
Supply Voltage (DC)	5.00 V
Power Rating	3 W
Number of Outputs	3 Output
Input Voltage (DC)	4.50V ~ 5.50V
Output Voltage	-24.0 V
Output Current	42.0 mA
Output Power	3 W
Isolation Voltage	1 kV
Input Voltage (Max)	5.5 V
Input Voltage (Min)	4.5 V
Input Voltage (DC Max)	5.5 V
Input Voltage (DC Min)	4.5 v
Input Power (Max)	3 W
Input Power (Max)	3 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	4.5VDC ~ 5.5VDC
	Show
Size-Length	21.8 mm
Size-Width	11.1 mm
Size-Height	7.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
