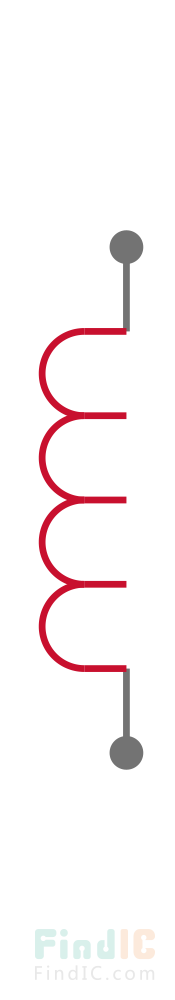

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 4.7µH Shielded Wirewound Inductor 2.6A 35mOhm Nonstandard
NRS5030T4R7MMGJ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | 5030 |
| Current Rating | 2.6 A |
| Capacitance Tolerance | ±20 % |
| Halogen Free Status | Halogen Free |
| Inductance | 4.7 µH |
| Self Resonant Frequency | 31 MHz |
| Part Family | NR |
| Inductance Tolerance | ±20 % |
| Test Frequency | 0.1 MHz |
| DC Resistance (DCR) | 35 mΩ |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Resistance (DC Max) | 0.0455 Ω |
| Show | |
| Size-Length | 4.9 mm |
| Size-Width | 4.9 mm |
| Size-Height | 3.1 mm |
| Operating Temperature | -25℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 500 |
| RoHS | RoHS Compliant |
| Lead-Free Status |
